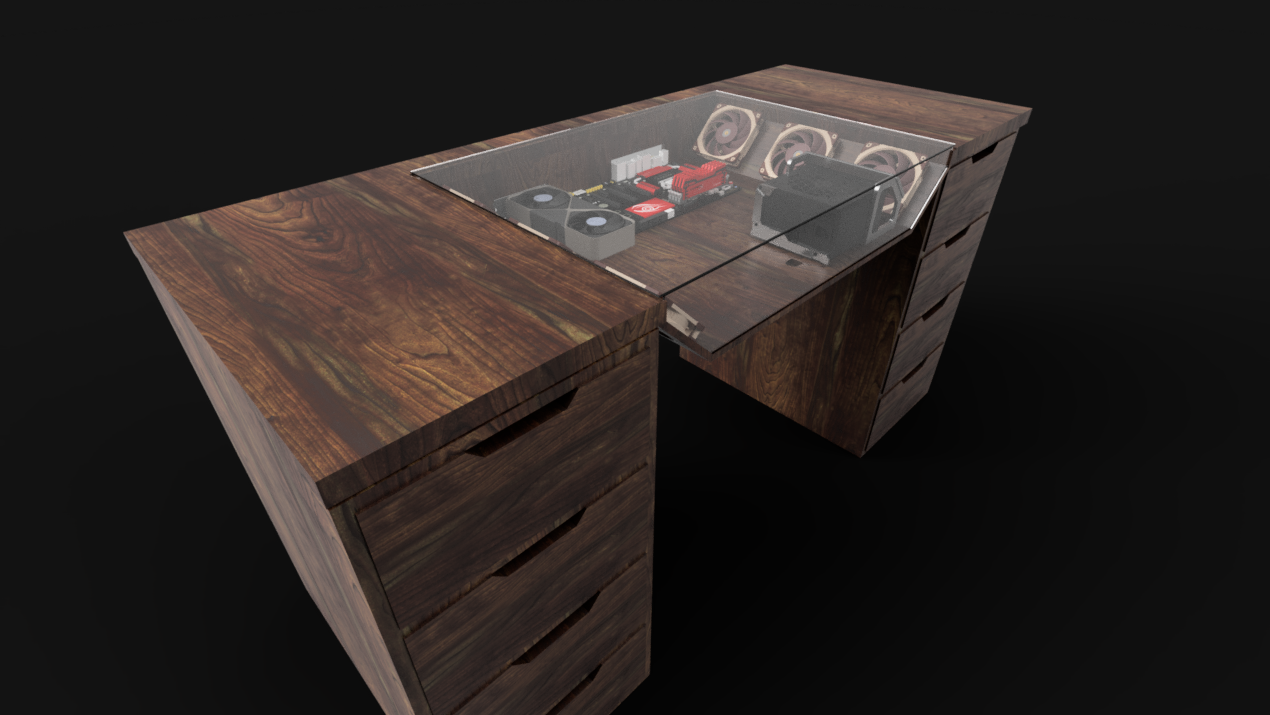

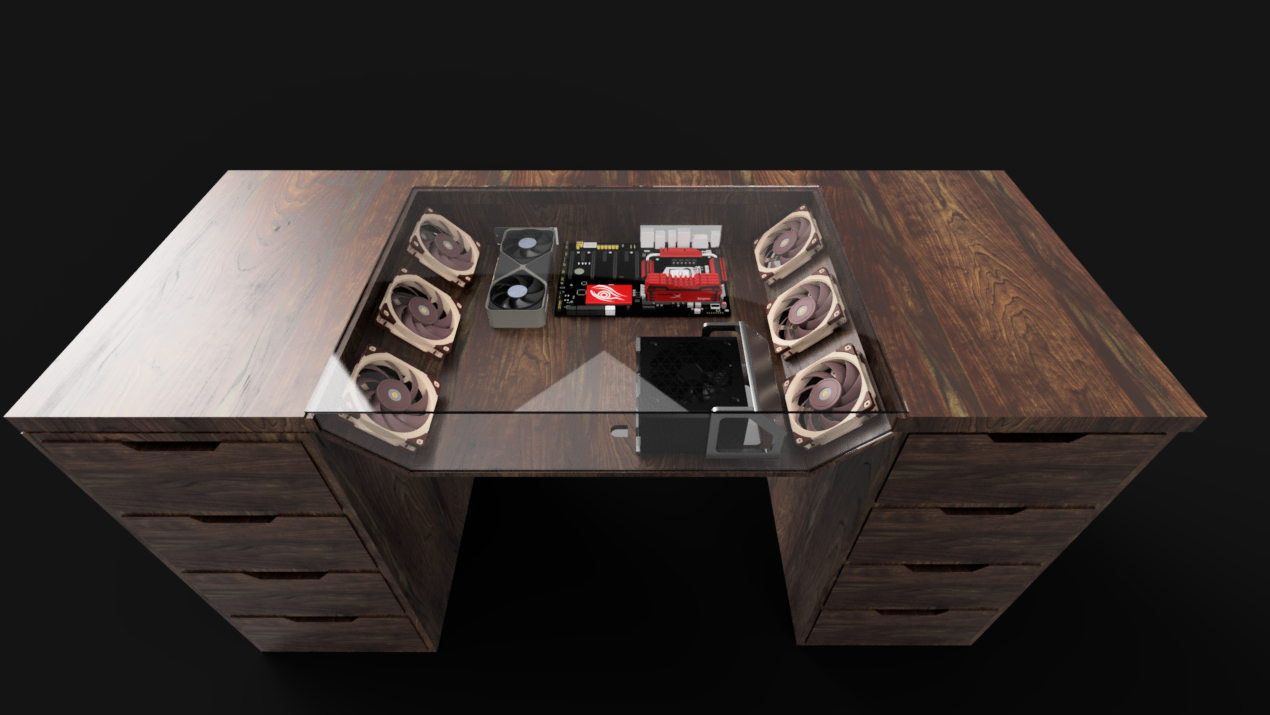

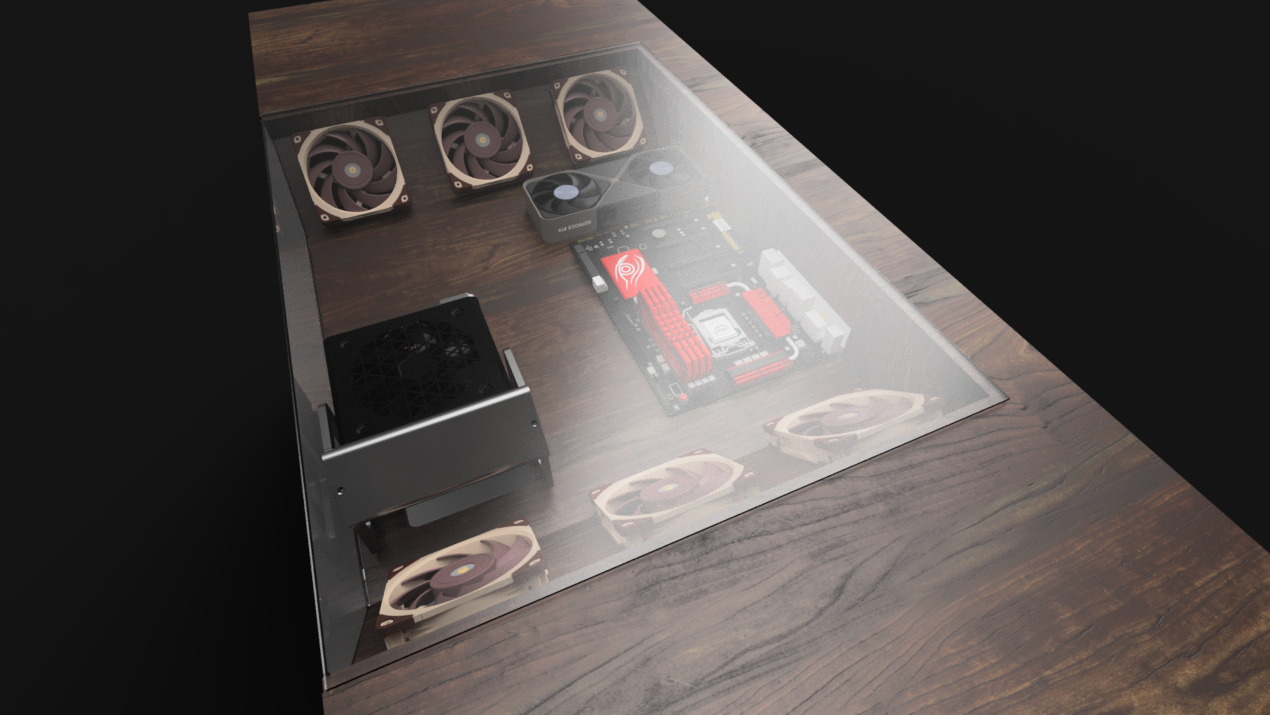

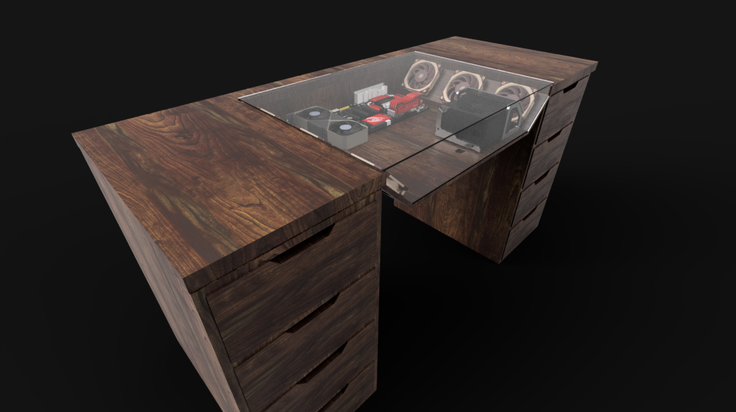

Designed a full-scale executive gaming desk with an integrated PC build chamber fully modeled in Fusion 360. The desk features a glass-topped component bay housing a motherboard, GPU, CPU cooler, and 8x Noctua 120mm fans for airflow, all recessed into a walnut-finish wooden body with dual drawer pedestals.

Every part was designed for real world manufacturability: wood panels sized for CNC cutting, fan mounts with correct bolt patterns, and glass panel clearances. Delivered complete assembly, photorealistic renders, and export ready files.

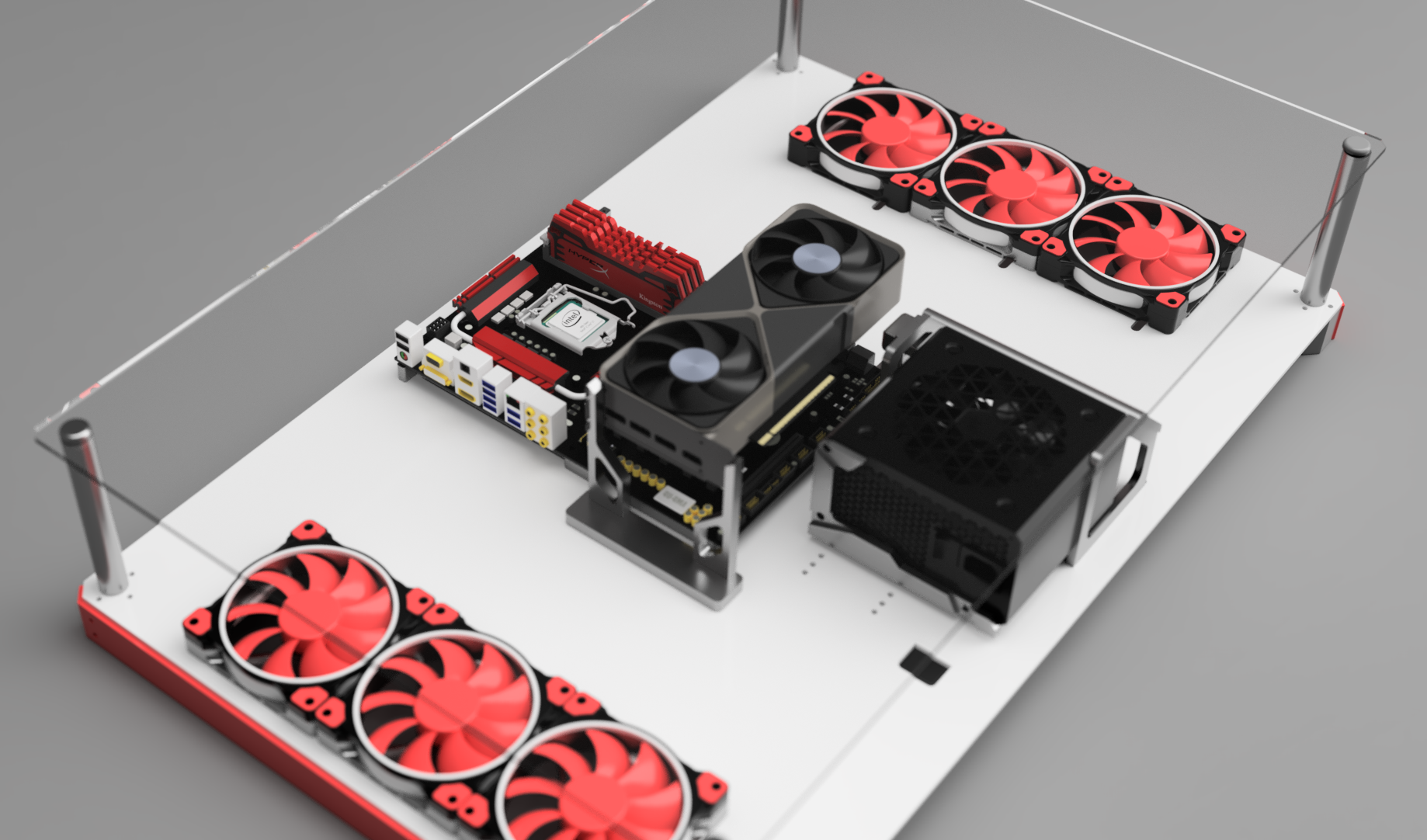

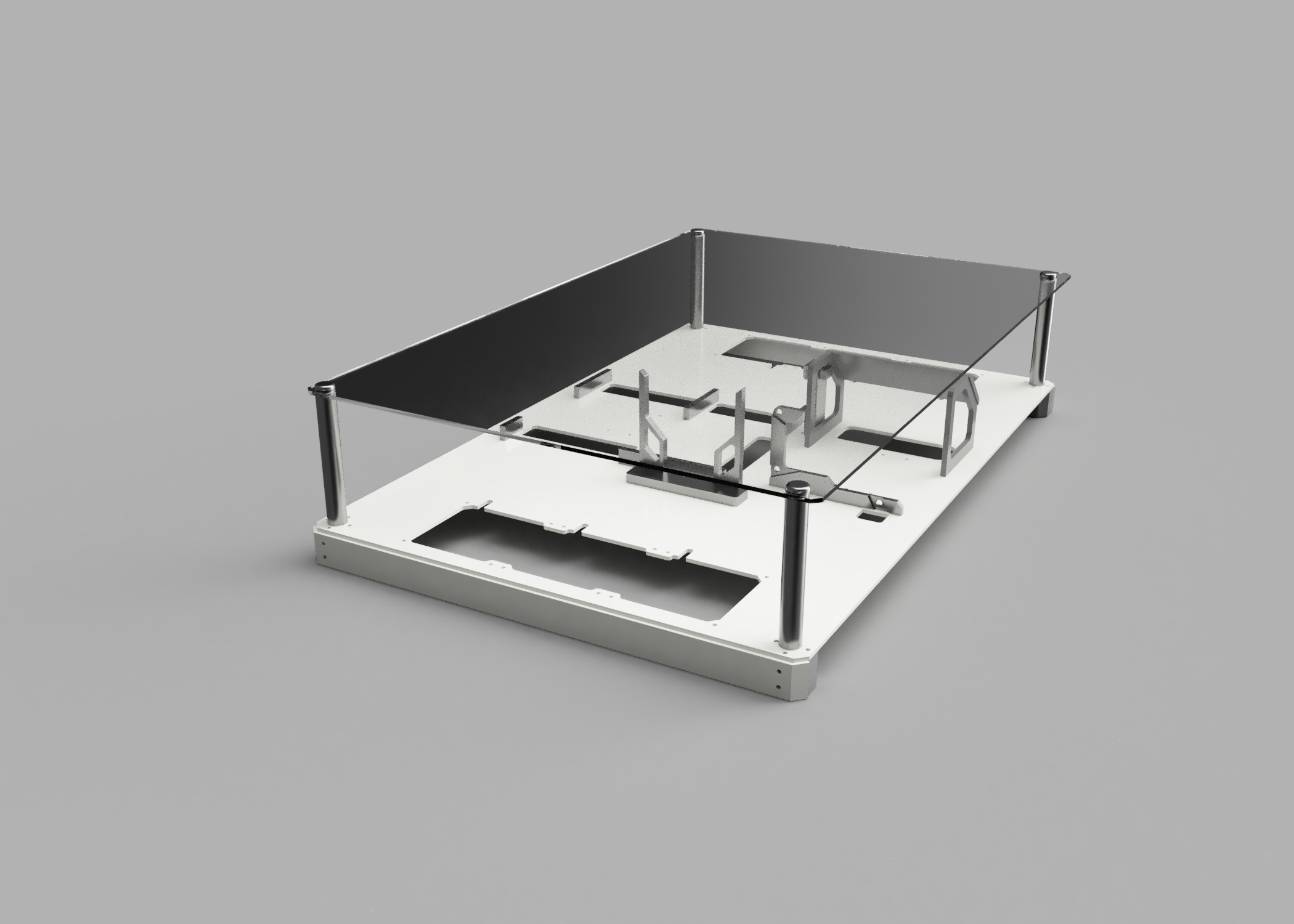

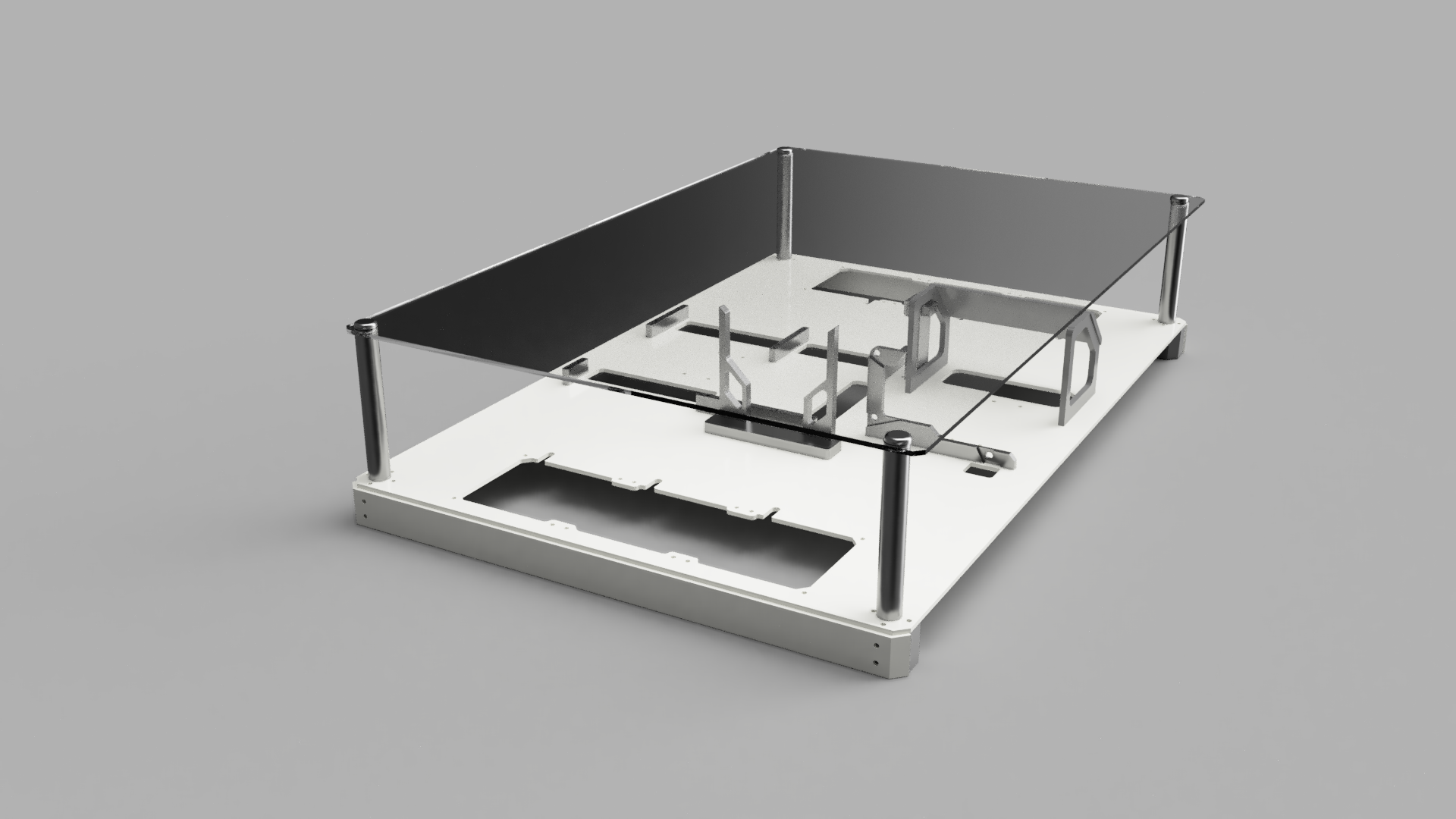

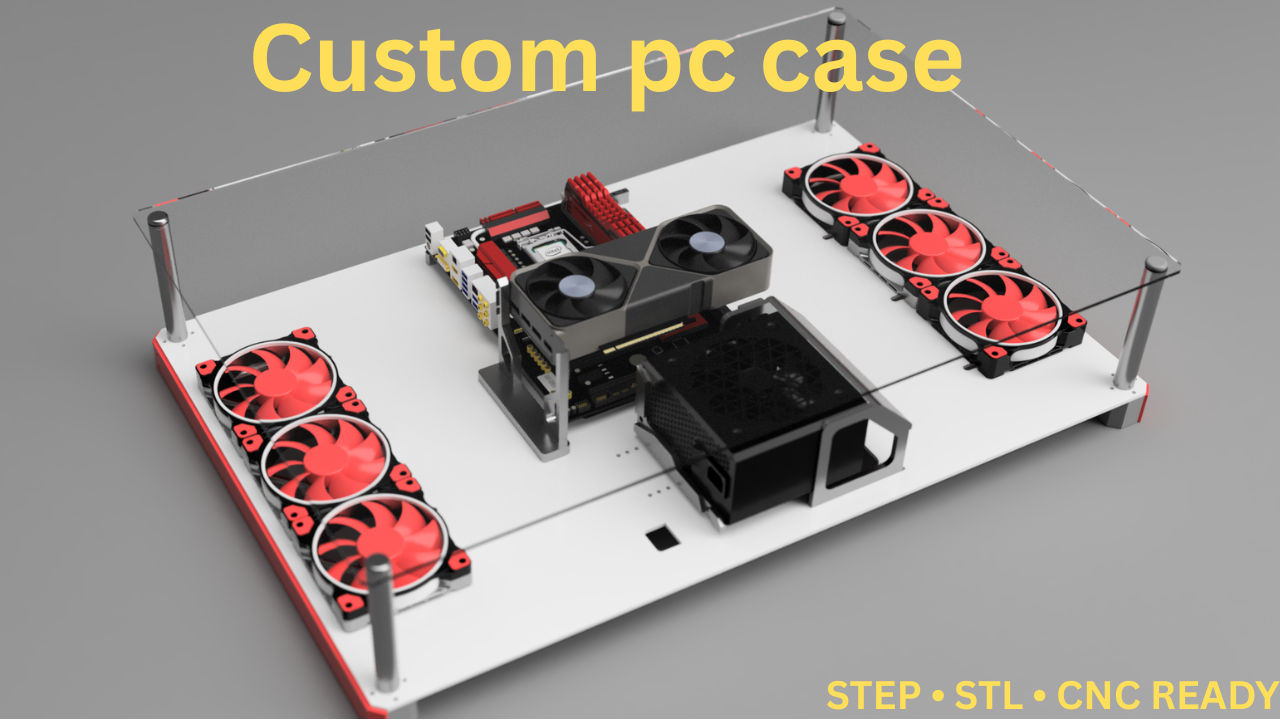

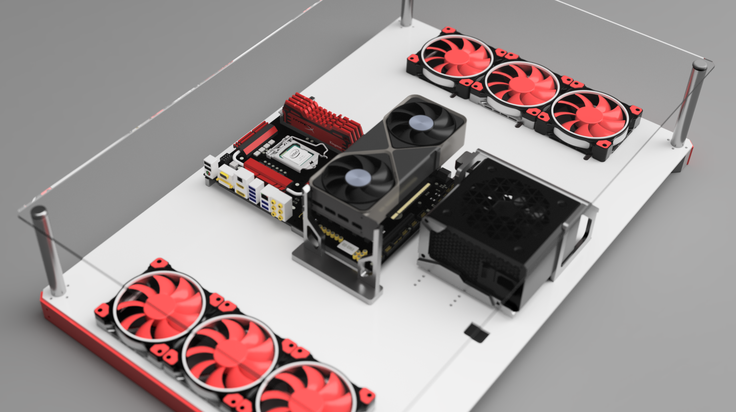

Custom open frame PC case designed entirely in Fusion 360.

The build features a white aluminum style base plate, vertical GPU mount bracket, PSU enclosure, dual 3x120mm fan arrays in red/black, and acrylic side panels supported by steel standoff posts all modeled with real component clearances and mounting accuracy.

Deliverables included: → Full Fusion 360 assembly (.f3d) → STEP & STL files for fabrication → DXF flat patterns for laser cut panels → Photorealistic render pack

Everything designed to be built not just displayed.

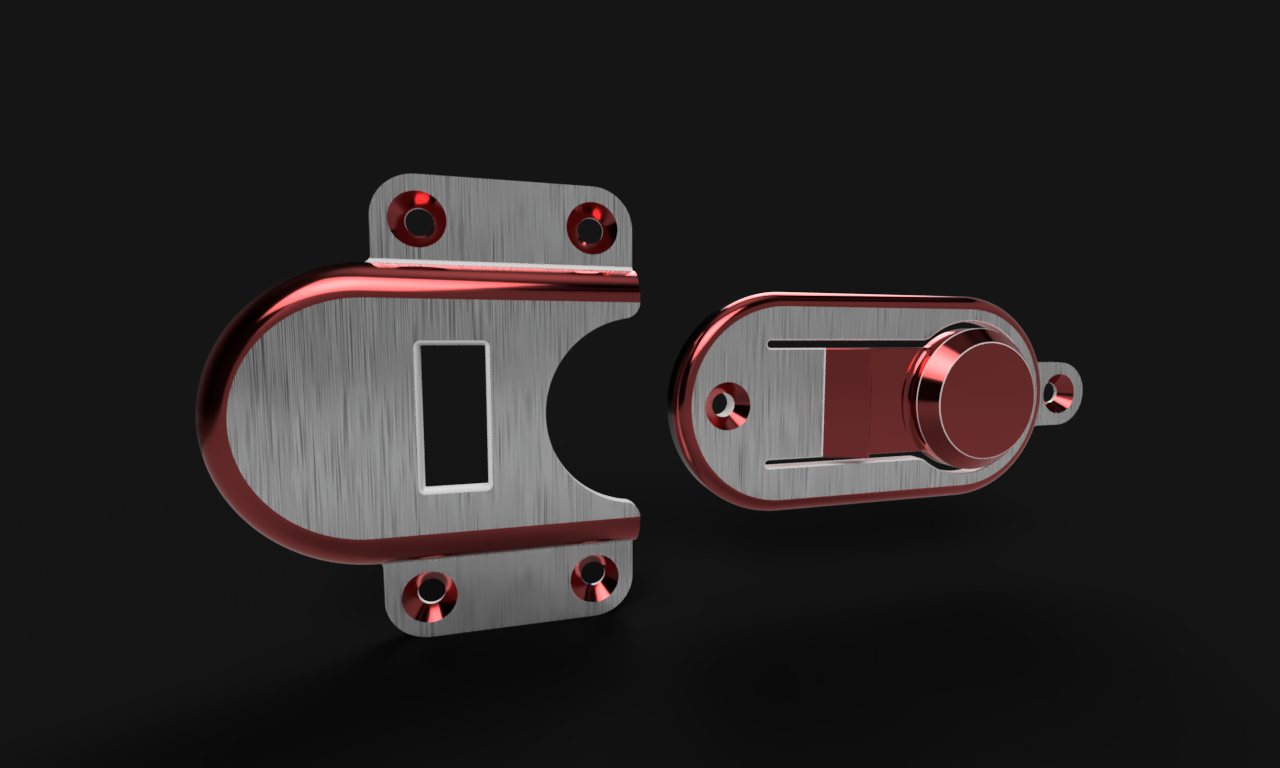

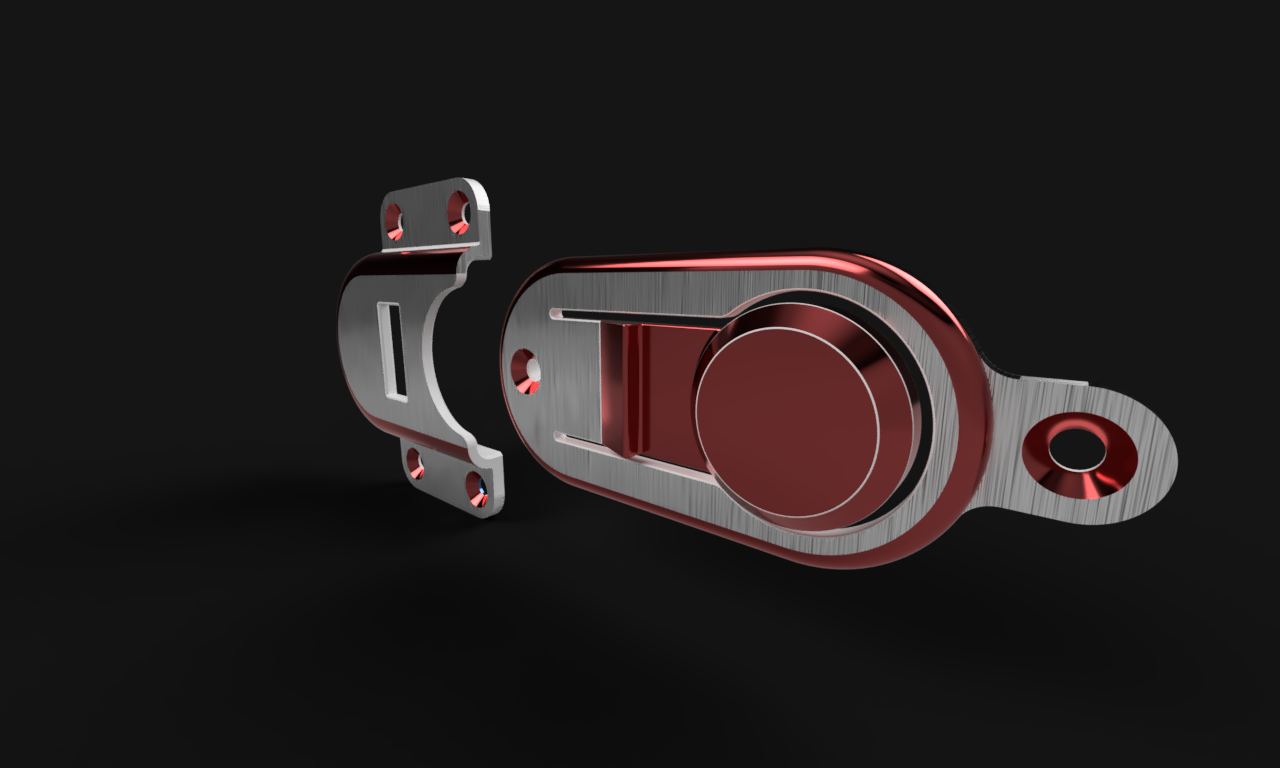

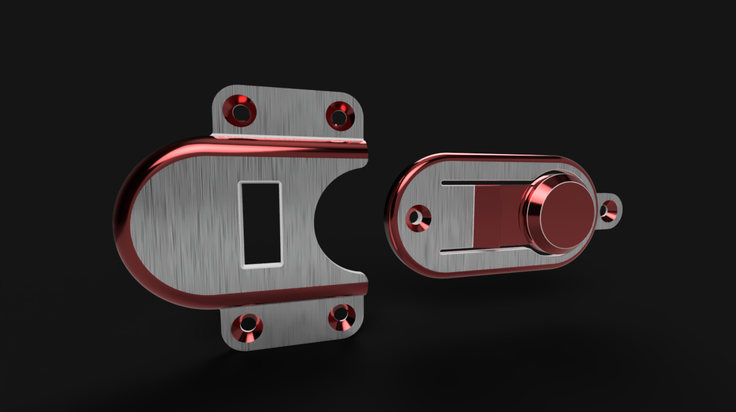

Custom 2 part bolt lock mechanism designed in Fusion 360.

Includes a wall-mount strike plate with countersunk screw bosses and a sliding bolt actuator with thumb knob both modeled in brushed steel with anodized red accents. Designed for real-world CNC machining or metal 3D printing with full tolerance fitment between locking components.

Deliverables included: → Full Fusion 360 assembly (.f3d) → STEP files for CNC or printing → Individual part files with tolerances → Photorealistic render pack (locked & unlocked states)

Precision mechanical design ready for the machine shop.
